Standard otiska Trijicon RMR

Trijicon RMR footprint standard

Koji će crvene točke raditi s Trijicon nosačem? Hoćete li moći instalirati Holosun 507C na istu ploču kao Trijicon RMR crvena točka nišan? U ovom članku pokrivamo potpunu kompatibilnost otiska.

Objašnjena kompatibilnost otiska

Što znači "otisak"? Pojam otisak odnosi se na strukturu utičnica i rupa za vijke na bazi optičkog uređaja.

A što znači ako su otisci kompatibilni? Svaki optički nišan ima neku bazu za montažu. Baza se sastoji od klinova na raznim pozicijama i rupa za vijke koji se koriste za fiksaciju nišana na nosač.

Ako bilo koja dva nišani koriste istu bazu za montažu, kažemo da dijele isti otisak. U ovom članku pokazujemo koji crvene točke dijele isti otisak.

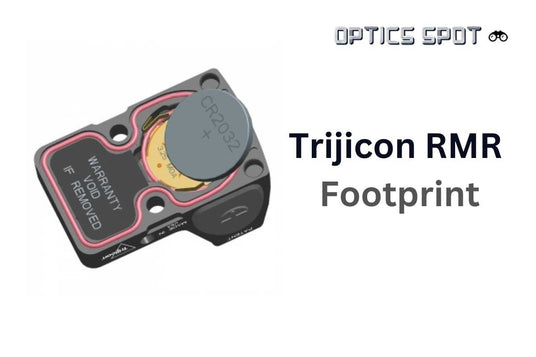

Trijicon RMR uzorak otiska

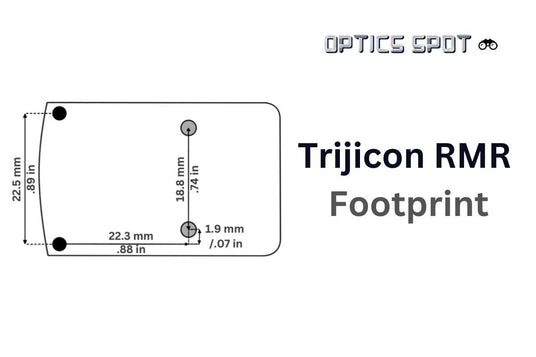

RMR otisak se sastoji od dvije utičnice sprijeda i dvije rupe za vijke u sredini nišana.

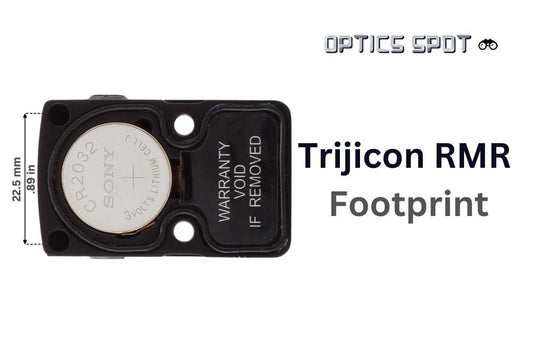

Prednje utičnice su udaljene 22,5 mm / 0,89 inča jedna od druge, svaka je smještena u kutu prednjeg dijela nišana. Položaj ovih dviju utičnica odgovara položaju klinova koji se nalaze na površini za montažu bilo kojeg nosača za ovaj standard.

Rupe za vijke nalaze se otprilike u sredini optičkog uređaja. One služe za fiksaciju nišana na nosač. Ove dvije rupe za vijke udaljene su 18,8 mm / 0,74 inča jedna od druge.

Vijci koji se koriste za ove rupe za vijke uvijek su uključeni u paket s nišanom.

Kompatibilni crvene točke

RMR je jedan od najčešćih otisaka na tržištu.

U nastavku možete pronaći potpuni popis nišani koji će raditi s Trijicon otiskom.

Trijicon RMR standard

Crvene točke s Trijicon RMR otiskom

Pogledaj sve

Kako montirati crvena točka s Trijicon RMR otiskom

Ovisi o tome koji uređaj želite montirati.

  • Hoćete li ga instalirati na picatinny nosač? Odnosno, pištolj opremljen s picatinny šina? Tada trebate potražiti picatinny nosač s RMR otiskom.
  • Ili ćete ga montirati na pištolj? I hoće li pištolj biti optics ready (s kliznim dijelom pištolja izrezanim za crvena točka). Tada trebate potražiti montaža za crvenu točku s RMR otiskom.
  • Ili će to biti standardni pištolj bez takvog izreza? Tada trebate potražiti optičku ploču s RMR otiskom.

Ostali standardi otiska

Postoji mnogo različitih baza za crvena točka nišani, ali drugi najčešći su sljedeći:
