Standard otiska Trijicon RMR

15. veljača 2025.

Koji će crvene točke raditi s Trijicon nosačem? Hoćete li moći instalirati Holosun 507C na istu ploču kao Trijicon RMR crvena točka nišan? U ovom članku pokrivamo potpunu kompatibilnost otiska.

Objašnjena kompatibilnost otiska

Što znači "otisak"? Pojam otisak odnosi se na strukturu utičnica i rupa za vijke na bazi optičkog uređaja.

A što znači ako su otisci kompatibilni? Svaki optički nišan ima neku bazu za montažu. Baza se sastoji od klinova na raznim pozicijama i rupa za vijke koji se koriste za fiksaciju nišana na nosač.

Ako bilo koja dva nišani koriste istu bazu za montažu, kažemo da dijele isti otisak. U ovom članku pokazujemo koji crvene točke dijele isti otisak.

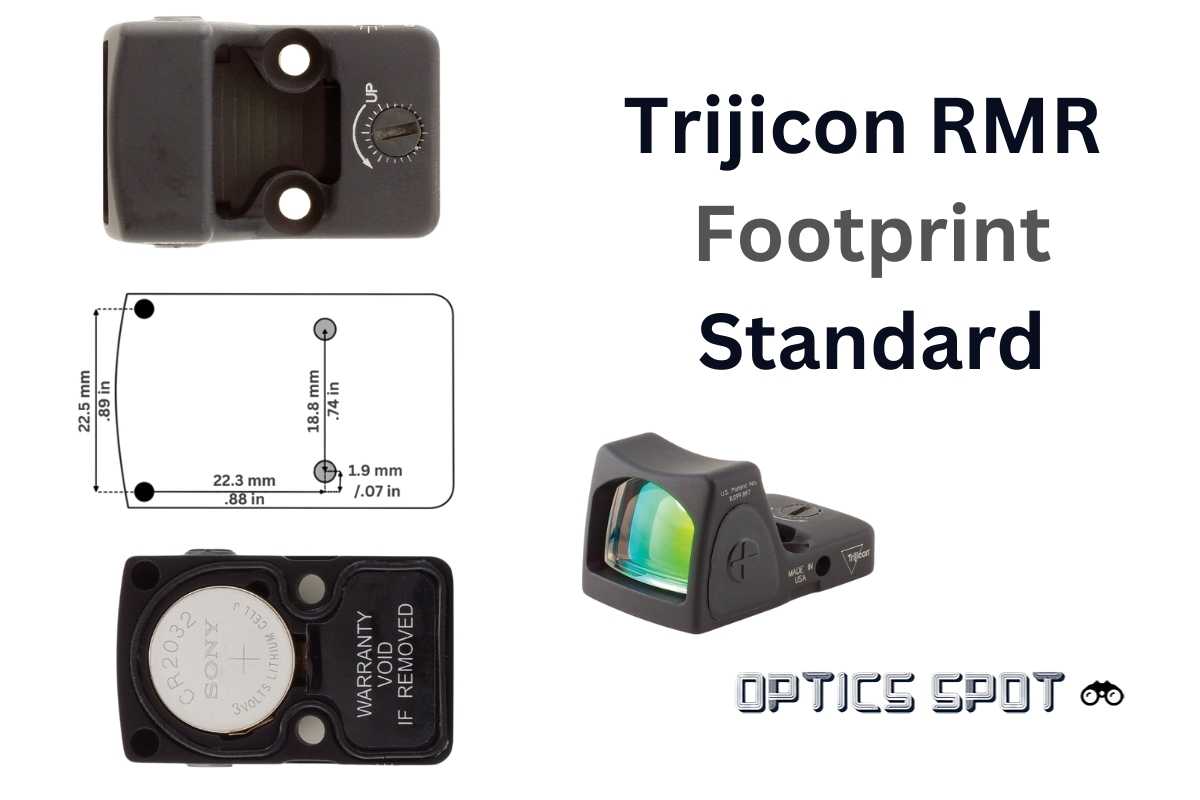

Trijicon RMR uzorak otiska

RMR otisak se sastoji od dvije utičnice sprijeda i dvije rupe za vijke u sredini nišana.

Prednje utičnice su udaljene 22,5 mm / 0,89 inča jedna od druge, svaka je smještena u kutu prednjeg dijela nišana. Položaj ovih dviju utičnica odgovara položaju klinova koji se nalaze na površini za montažu bilo kojeg nosača za ovaj standard.

Rupe za vijke nalaze se otprilike u sredini optičkog uređaja. One služe za fiksaciju nišana na nosač. Ove dvije rupe za vijke udaljene su 18,8 mm / 0,74 inča jedna od druge.

Vijci koji se koriste za ove rupe za vijke uvijek su uključeni u paket s nišanom.

Kompatibilni crvene točke

RMR je jedan od najčešćih otisaka na tržištu.

U nastavku možete pronaći potpuni popis nišani koji će raditi s Trijicon otiskom.

Trijicon RMR standard

ADE Advanced Optics RD3-019 Stingray,
ADE Advanced Optics RD3-020 Raptor,
ADE Advanced Optics RD3-023 Valkyrie,
Holosun 407C,
Holosun 407C-GR,
Holosun 407CO,
Holosun 507C,
Holosun 507C-GR,
Holosun 507 Comp,
Holosun 507 Comp-GR,
Holosun 508T-RD,
Holosun 508T-GR,
Olight Osight [RD],
Olight Osight [GR],
Olight Osight X,
Redwin Cobra 26x22 MTR,
Riton X3 Tactix PRD,
Spina BAT-24,
Swampfox Justice RMR 1×27,
Swampfox Liberty RMR 1×22,
Swampfox Kingslayer,
Trijicon RMR,
Trijicon SRO,
Vector Optics Frenzy 1x22x26,
Vector Optics Frenzy 1x22x26 MOS,
Vector Optics Frenzy 1x22x26 MOS MRS,
Vector Optics Frenzy-X 1x19x26 MRS GenII,
Vector Optics Frenzy-X 1x19x28,
Victoptics V3 1x17x26

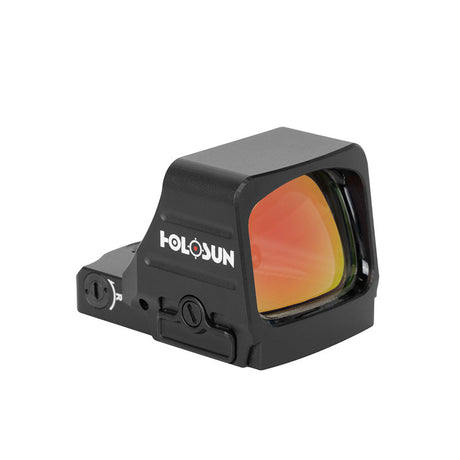

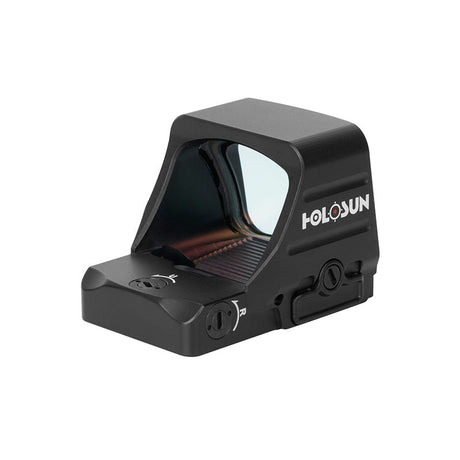

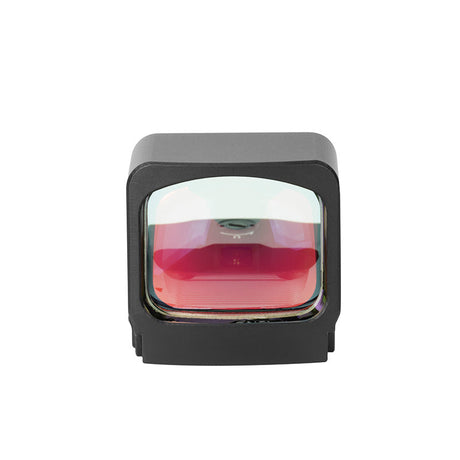

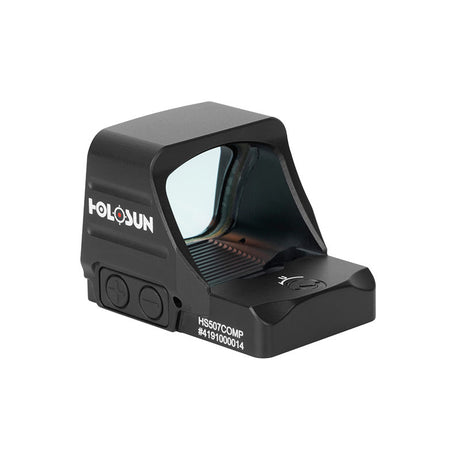

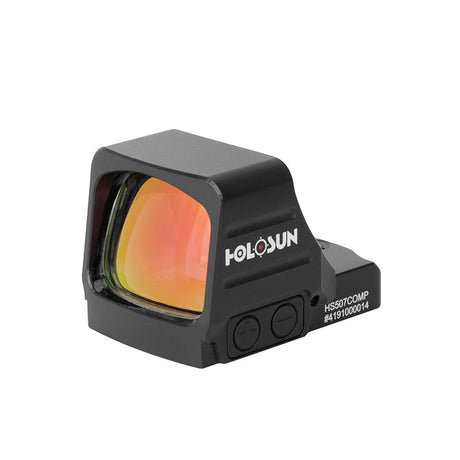

Holosun 507 Comp

(2)

€456,00 EUR

Vrlo niska zaliha (2 jedinica)

Pogledaj detalje
Vector Optics Frenzy 1x22x26 MOS MRS crvena točka

(1)

€159,00 EUR

Vrlo niska zaliha (7 jedinica)

Pogledaj detalje
Rasprodano

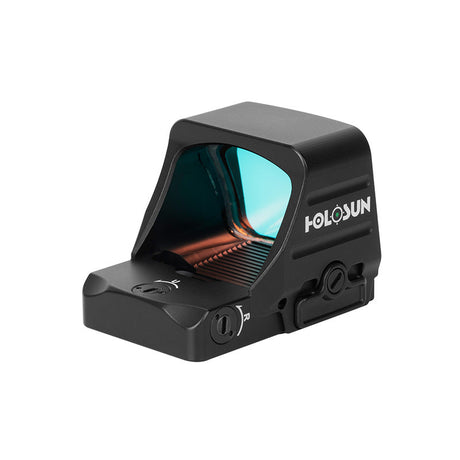

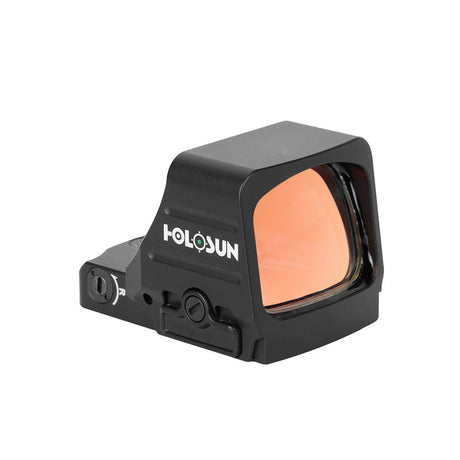

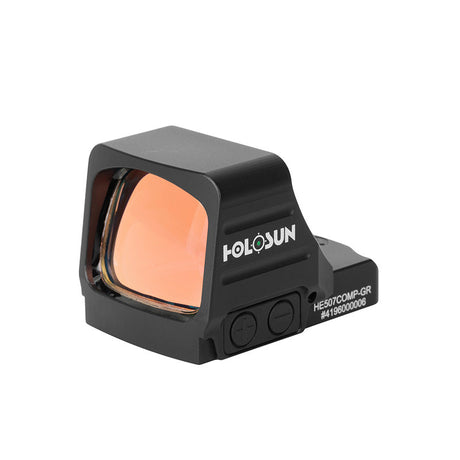

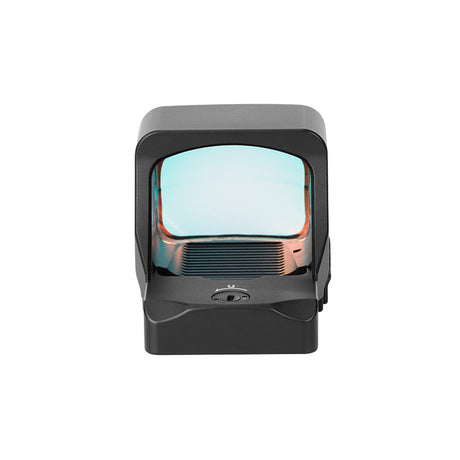

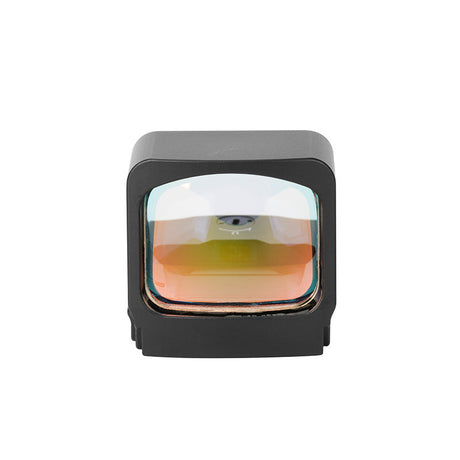

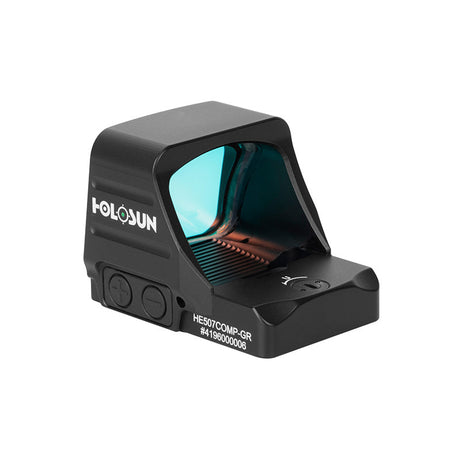

Holosun 507 Comp GR

(2)

€520,00 EUR

Pogledaj detalje
Vector Optics Frenzy 1x22x26 MOS crvena točka

€169,00 EUR

Niska zaliha (19 jedinica)

Pogledaj detalje
Vector Optics Frenzy-X 1x19x28 GenII

€179,00 EUR

Niska zaliha (13 jedinica)

Pogledaj detalje
Holosun 407C X2

(1)

€328,00 EUR

Vrlo niska zaliha (2 jedinica)

Pogledaj detalje

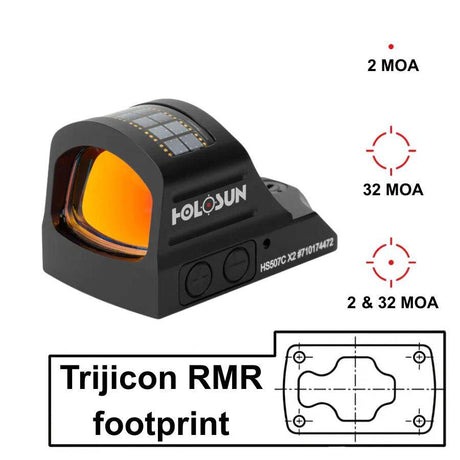

Holosun 507C X2

(1)

€412,00 EUR

Vrlo niska zaliha (2 jedinica)

Pogledaj detalje
Holosun 407C X2 GR

€356,00 EUR

Vrlo niska zaliha (1 jedinica)

Pogledaj detalje

Kako montirati crvena točka s Trijicon RMR otiskom

Ovisi o tome koji uređaj želite montirati.

Hoćete li ga instalirati na picatinny nosač? Odnosno, pištolj opremljen s picatinny šina? Tada trebate potražiti picatinny nosač s RMR otiskom.
Ili ćete ga montirati na pištolj? I hoće li pištolj biti optics ready (s kliznim dijelom pištolja izrezanim za crvena točka). Tada trebate potražiti montaža za crvenu točku s RMR otiskom.
Ili će to biti standardni pištolj bez takvog izreza? Tada trebate potražiti optičku ploču s RMR otiskom.

Ostali standardi otiska

Postoji mnogo različitih baza za crvena točka nišani, ali drugi najčešći su sljedeći:
