Shield RMSc standard otiska

Shield RMSc footprint standard

Koji crvene točke ćete moći montirati na nosač s RMSc ili Shield RMSc otiskom? Hoćete li moći instalirati Sig Sauer Romeo Zero na istu ploču kao Shield RMSc? U ovom članku pokrivamo punu kompatibilnost Shield RMSc otiska.

Objašnjenje kompatibilnosti otiska

Što znači "otisk"? Pojam otisk odnosi se na strukturu utičnica i rupa za vijke na bazi optičkog uređaja.

I što znači ako su otisci kompatibilni?

Svaki optički ciljnik ima neku bazu za montažu. Baza se sastoji od pinova na raznim pozicijama i rupa za vijke koji se koriste za fiksaciju ciljnika na nosače. Ako bilo koja dva nišani koriste istu bazu za montažu, kažemo da dijele isti otisk.

U ovom članku pokazujemo koji crvena točka nišani dijele isti otisk.

Shield RMSc uzorak otiska

Shield RMSc otisk se sastoji od četiri utičnice u kutovima ciljnika i dvije rupe za vijke na stražnjem dijelu ciljnika.

Prednje kao i stražnje utičnice su udaljene 17 mm / 0,66 inča jedna od druge. Udaljenost od stražnjih utičnica do prednjih utičnica je 32,8 mm / 1,29 inča. Položaj ovih četiri utičnica odgovara položaju pinova koji se nalaze na montažnoj površini svakog nosača za ovaj standard.

Rupe za vijke su smještene u stražnjem dijelu optičkog uređaja. One služe za fiksaciju ciljnika na nosače. Ove dvije rupe za vijke su udaljene 14 mm / 0,55 inča jedna od druge.

Vijci koji se koriste za ove rupe za vijke uvijek su uključeni u paket s ciljnika.

Kompatibilni crvene točke

RMSc otisk dijeli mnogi drugi proizvođači na tržištu.

U nastavku možete pronaći kompletan popis crvena točka nišani koji će raditi s Shield RMSc otiskom.

Shield RMSc standard

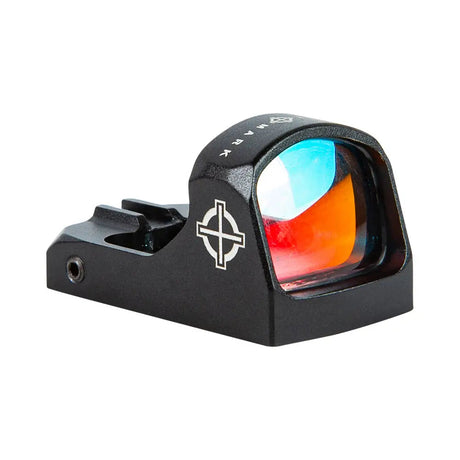

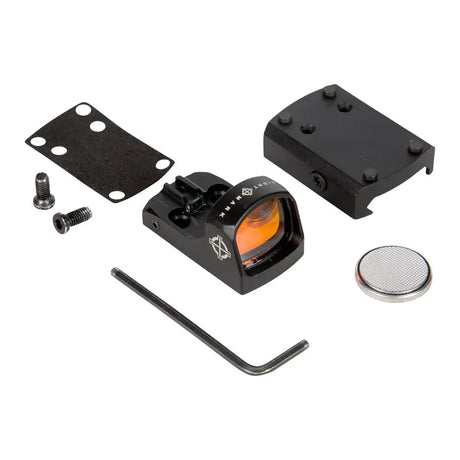

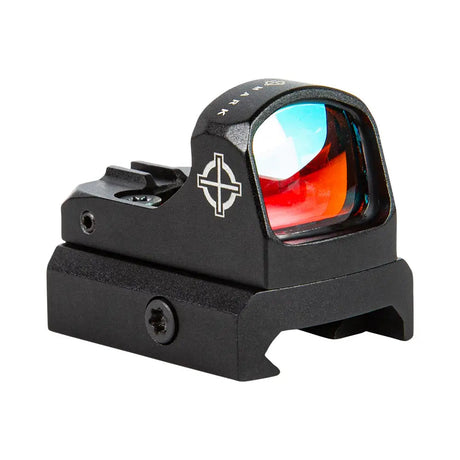

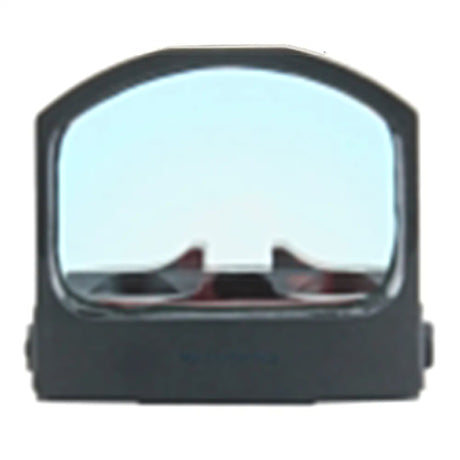

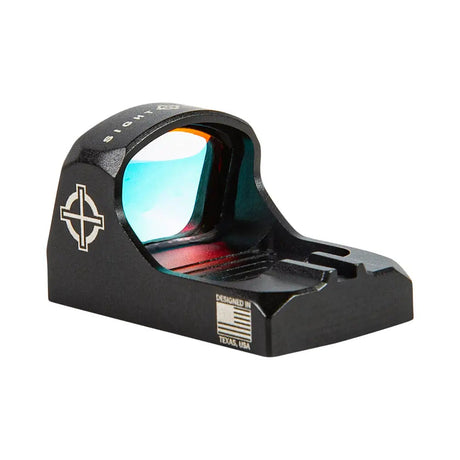

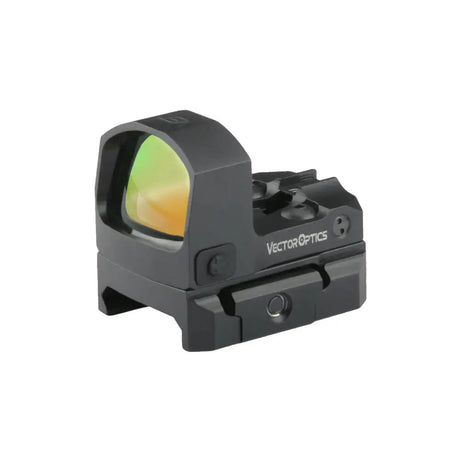

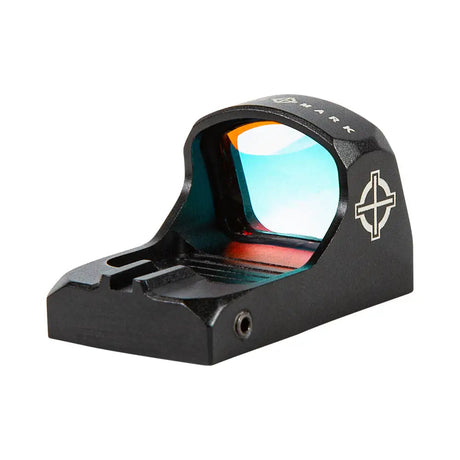

Crvene točke s Shield RMSc otiskom

Pogledaj sve

Kako montirati crvena točka s Shield RMSc otiskom

Ovisi o tome na koji uređaj želite montirati.

Ostali standardi otiska

Postoje mnoge različite osnove za crvena točka nišani, ali ostali najčešći su sljedeći:
